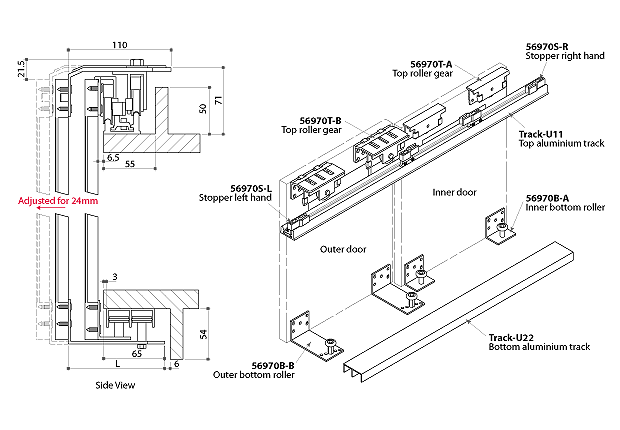

56970 Top Hung Interior Door Hardware
    • * 1 set contains right and left hand stopper
      * 2 sets required in 2, 3 or 4 sliding doors design
      * For wooden or aluminium framed door
      * Loading capacity: 80 kgs per door

      56970T-A Inner Running Gear
      56970T-B Outer Running Gear
      * Adjustable installation position
      56970B-A Inner Bottom Roller
      * For wooden door
      * Dimension (LxWxH): 35x50x42mm
      56970B-B Outer Bottom Roller
      * For wooden door
      * Dimension (LxWxH): 103x50x48mm
      * With 5 adjusting hole, 12mm adjustment
      56970B-AA Inner Bottom Roller
      * For aluminium door
      * Dimension (LxWxH): 35x50x38mm
      56970B-BA Outer Bottom Roller
      * For aluminium door
      * Dimension (LxWxH): 90x50x48mm
      * With 5 adjusting hole, 12mm adjustment
      56970S-L & 56970S-R Stopper

    • Item No.
    • 56970,56970T-A,56970T-B,56970B-A,56970B-B,56970B-AA,56970B-BA,56970S-L & 56970S-R
    • Associated product
    • 56990 Interior Sliding Door Fittings
      56940 Interior Top Hung Sliding Door Fittings
      56950 Interior Top Hung Sliding Door Fittings
